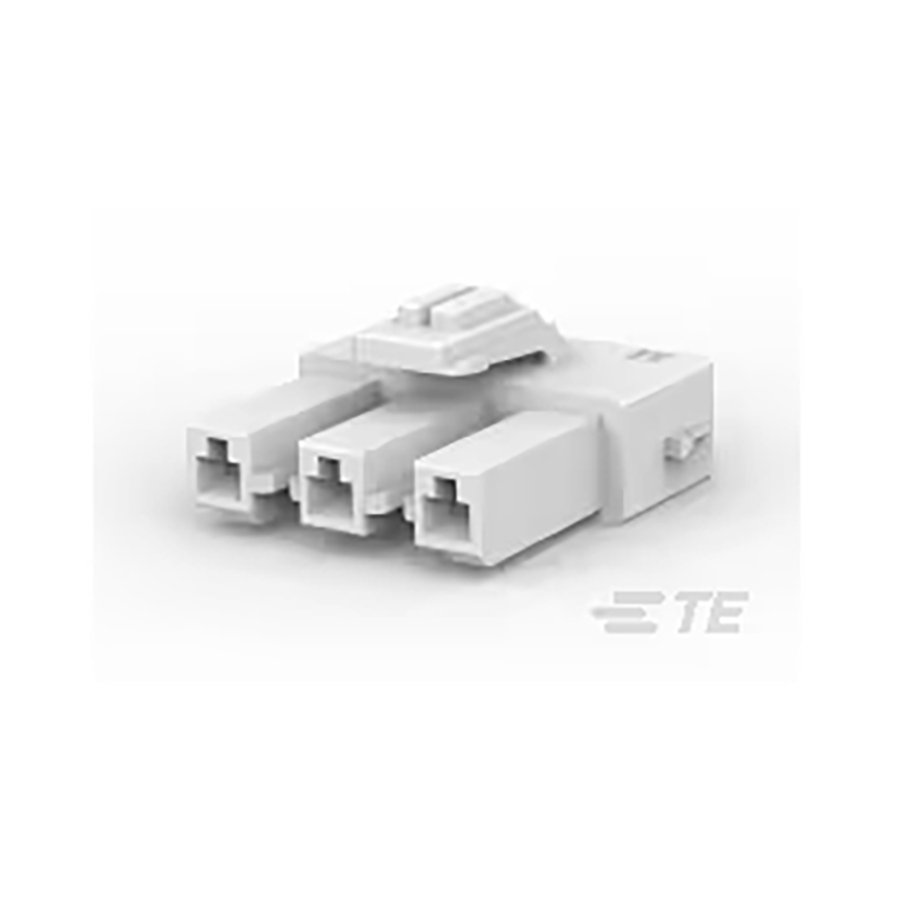

368570-1
Manufacturer:
TE Connectivity
Mfr.Part #:
368570-1
Datasheet:
Description:
Headers and Wire Housings Panel Socket Number of Positions:3 Pitch:6.5 mm
| Parameter | Value |
|---|---|
| Termination | Solder Pin |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Pitch | 6.5 mm |
| Flammability Rating | UL94 V-0 |
| Operating Supply Voltage | 300 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Housing Color | Natural |
| Mating Post Length | 5.84 mm |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 10.16 mm |
